Arduino For Beginners

Arduino For Beginners , More and more makerspaces around the arena are seeking to add coding and electronics to their maker training applications.

One of the exceptional ways to do that is through integrating an Arduino board into makerspace initiatives and instructions.

We’ve located that a variety of maker educators haven’t taken the plunge into coding or Arduino due to the fact they suppose programming is scary.

Because of this, we desired to make sure this tutorial turned into written for absolutely the amateur and not using a enjoy in anyway.

This tutorial is a high degree view of all the elements and portions of the Arduino atmosphere. In future posts, we will take you grade by grade in creating your first simple Arduino undertaking.

Arduino For Beginners, What Is Arduino?

Arduino is an open source programmable circuit board that can be integrated right into a extensive variety of makerspace projects each simple and complicated.

This board includes a microcontroller which is capable of be programmed to sense and manipulate objects within the physical global. By responding to sensors and inputs, the Arduino is capable of engage with a huge array of outputs together with LEDs, vehicles and shows.

Because of it’s flexibility and occasional fee, Arduino has come to be a completely famous choice for makers and makerspaces trying to create interactive hardware initiatives.

Arduino For Beginners, Arduino become brought lower back in 2005 in Italy by way of Massimo Banzi as a manner for non-engineers to have get admission to to a low fee, simple tool for creating hardware projects.

Since the board is open-source, it is released beneath a Creative Commons license which permits every person to produce their very own board. If you search the internet.

You will find there are hundreds of Arduino compatible clones and variations to be had but the best professional boards have Arduino in it’s name.

In the following section, we’re going to speak about among the Arduino boards to be had and how they vary from every different.

Arduino For Beginners, Types of Arduino Boards

Arduino is a tremendous platform for prototyping tasks and inventions however can be difficult whilst having to pick out the proper board. If you’re trendy to this, you may have always concept that there was simply one “Arduino” board and that’s it.

In fact, there are numerous versions of the legit Arduino forums after which there are masses greater from competitors who offer clones. But don’t worry, we’re going to expose you which one to begin with later on on this academic.

Arduino For Beginners, Below are some examples of the extraordinary varieties of Arduino forums obtainable. The forums with the call Arduino on them are the reliable forums but there are also a lot of really first rate clones in the marketplace as well.

One of the excellent motives to buy a clone is the reality they are usually much less high-priced than their reliable counterpart. Adafruit and Sparkfun for example.

Sell variations of the Arduino forums which price much less however nonetheless have the identical first-rate of the originals. One word of warning, be cautious when shopping for boards from companies you don’t understand.

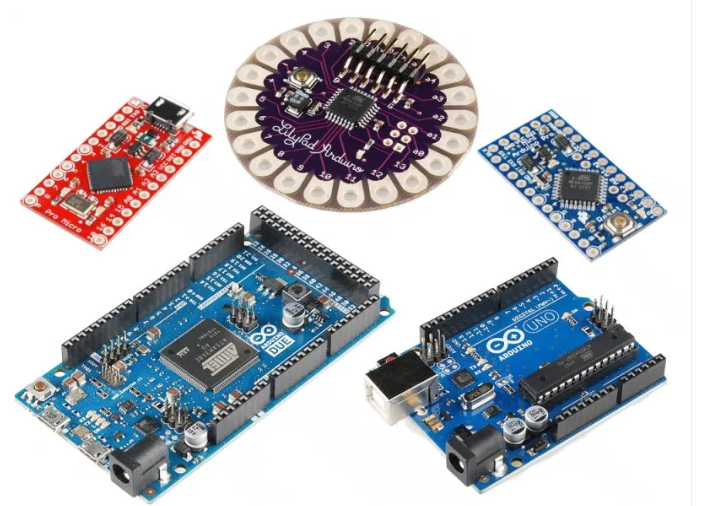

Types of Arduino

Another element to take into account while selecting a board is the form of assignment you are trying to do. For example, if you want to create a wearable digital undertaking, you might want to recall the LilyPad board from Sparkfun.

The LilyPad is designed to be without problems sewn into e-textiles and wearable projects. If your assignment has a small shape component, you might need to apply the Arduino Pro Mini which has a totally small footprint as compared to other boards.

Check out Sparkfun’s Arduino Comparison Guide for a breakdown and comparison of the top boards out there.

Next, we’re going to awareness on our favourite Arduino board which we advise beginners begin with.

Arduino For Beginners, Arduino Uno

Arduino For Beginners, One of the maximum famous Arduino forums out there is the Arduino Uno. While it turned into now not clearly the primary board to be launched, it stays to be the maximum actively used and maximum extensively documented on the market.

Because of its intense reputation, the Arduino Uno has a ton of assignment tutorials and boards across the internet that assist you to get began or out of a jam. We’re huge lovers of the Uno because of it’s amazing capabilities and ease of use.

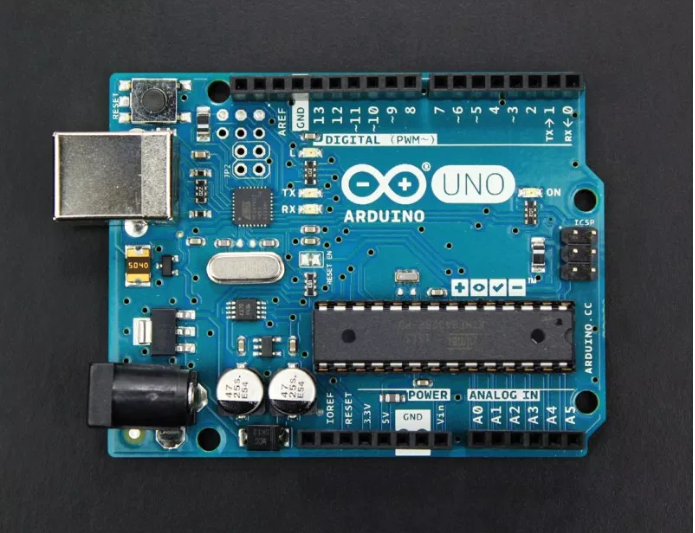

Arduino For Beginners, Board Breakdown

Here are the components that make up an Arduino board and what every of their functions are.

  1. Reset Button – This will restart any code that is loaded to the Arduino board
  2. AREF – Stands for “Analog Reference” and is used to set an external reference voltage
  3. Ground Pin – There are some floor pins at the Arduino and they all paintings the equal
  4. Digital Input/Output – Pins 0-thirteen can be used for virtual enter or output
  5. PWM – The pins marked with the (~) symbol can simulate analog output
  6. USB Connection – Used for powering up your Arduino and uploading sketches
  7. TX/RX – Transmit and get hold of facts indication LEDs
  8. ATmega Microcontroller – This is the brains and is where the packages are stored
  9. Power LED Indicator – This LED lighting fixtures up each time the board is plugged in a power source
  10. Voltage Regulator – This controls the quantity of voltage going into the Arduino board
  11. DC Power Barrel Jack – This is used for powering your Arduino with a energy deliver
  12. three.3V Pin – This pin materials three.Three volts of electricity on your tasks
  13. 5V Pin – This pin components 5 volts of power to your initiatives
  14. Ground Pins – There are a few floor pins on the Arduino and all of them paintings the equal
  15. Analog Pins – These pins can read the sign from an analog sensor and convert it to digital

Arduino For Beginners, Arduino Power Supply

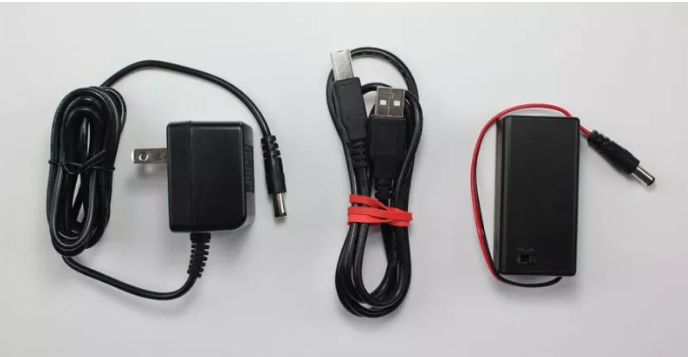

The Arduino Uno desires a strength source so as for it to operate and may be powered in an expansion of ways. You can do what the general public do and join the board without delay.

For your computer through a USB cable. If you need your venture to be mobile, keep in mind the use of a 9V battery p.C. To present it juice. The remaining method could be to use a 9V AC power supply.

Arduino For Beginners, Arduino Breadboard

Another very critical item whilst operating with Arduino is a solderless breadboard. This device allows you to prototype your Arduino task while not having to permanently solder the circuit collectively.

Using a breadboard permits you to create transient prototypes and experiment with different circuit designs. Inside the holes (tie factors) of the plastic housing, are steel clips which are connected to every different through strips of conductive material.

Arduino For Beginners, On a side note, the breadboard isn’t always powered on its own and wishes power brought to it from the Arduino board using jumper wires. These wires are also used to form the circuit by using connecting resistors, switches and different components collectively.

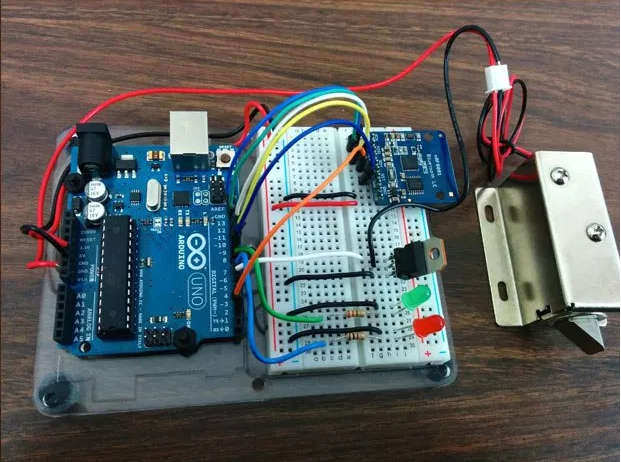

Here is a visual of what a completed Arduino circuit seems like when related to a breadboard.

Arduino For Beginners, How To Program Arduino

Once the circuit has been created at the breadboard, you’ll need to upload the program (referred to as a sketch) to the Arduino. The cartoon is a hard and fast of commands that tells the board what functions it desires to carry out.

An Arduino board can most effective keep and perform one sketch at a time. The software program used to create Arduino sketches is called the IDE which stands for Integrated Development Environment. The software program is free to down load and can be determined

Every Arduino cartoon has fundamental elements to this system:

void setup() – Sets matters up that ought to be executed once after which don’t occur again.

Void loop() – Contains the instructions that get repeated over and over until the board is grew to become off.

Arduino For Beginners, How Everything Works Together

The following 15 second video offers you a brief concept of how a breadboard, Arduino, jumper wires and the sketch work together to carry out a characteristic.

In this situation, we use a non permanent push button switch to blink an LED. In a future submit, we’ll dig deeper into the creation of circuits and programs for some amateur projects.

<iframe width="693" height="400" src="https://www.youtube.com/embed/tCaiPQxt3vM" frameborder="0" allow="accelerometer; autoplay; encrypted-media; gyroscope; picture-in-picture" allowfullscreen></iframe>

Arduino For Beginners, Arduino Projects

You can be thinking what an Arduino board can do except blink an LED. Below are some instance projects which assist to show off how simply wonderful this board is and the abilties of it.

If you’re searching out extra project ideas, check out web sites which include Instructables or Make Magazine which can be loaded with useful tutorials.

Arduino Light Following Robot – Instructables

Arduino Drone That Follows You – Instructables

LED Cube w/ Arduino Uno – Instructables

Control A Doorlock Using Arduino and Bluetooth – MAKE Magazine

Arduino For Beginners, Tools Needed

Next we will help to highlight some of the maximum common gear you will want whilst working with Arduino projects.

  • Needle-nose Pliers
  • Wire Strippers
  • Precision Screwdriver Set
  • Flush Cutters
  • Fine Tip Straight Tweezers
  • Digital Multimeter
  • Soldering Iron
  • Panavise Jr
  • Solder Sucker

Arduino For Beginners, Arduino Shields

If you want to feature a very specific functionality to your Arduino, you may need to apply a shield. Arduino shields plug into the pinnacle of the Arduino board and might add competencies.

Along with WiFi, Bluetooth, GPS and much more. There are literally loads of shields to select from and right here are a few examples.

  • WiFi Shield
  • LCD Shield
  • GPS Logger Shield
  • MP3 Music Maker Shield
  • Ethernet Shield
  • Motor/Stepper/Servo Shield
GPS Shield Plugged into Arduino Uno – Sparkfun.com

Arduino For Beginners, Arduino Sensors

If you need your Arduino to feel the arena around it, you will want to add a sensor. There are a huge range of sensors to pick out from and they each have a particular reason. Below you may locate a number of the typically used sensors in tasks.

  • Distance Ranging Sensor
  • PIR Motion Sensor
  • Light Sensor
  • Degree of Flex Sensor
  • Pressure Sensor
  • Proximity Sensor
  • Acceleration Sensor
  • Sound Detecting Sensor
  • RGB and Gesture Sensor
  • Humidity and Temperature Sensor
Examples of Arduino Sensors

Arduino For Beginners, Electronics Retailers

Below are some of our favourite locations we generally tend to head when we need makerspace materials or electronic components.

  • Adafruit
  • Sparkfun
  • Makershed
  • Radio Shack
  • Jameco
  • Digikey
  • MCM Electronics
  • Mouser

Conclusion

Are you geared up to create your first Arduino undertaking? Our subsequent post referred to as Simple Arduino Projects For Beginners will stroll you step by step from setup to completion. These simple Arduino tasks are a superb way to get your toes wet and learn about the board and coding language.
